PRODUCT DESCRIPTION
DICHEN 6TH-GEN FUSER – HDMI VIDEO FUSION DEVICE
The DICHEN 6th-Gen Fuser is a plug-and-play HDMI video fusion device built for low-latency multi-source display setups. It supports multiple resolutions and requires minimal configuration for everyday operation.
🔥 KEY FEATURES
- Supports multiple resolutions and refresh-rate configurations.
- Plug-and-play operation with no complicated software setup required.
- Low-latency hardware video fusion compared with software streaming workflows.
- Original-factory unit supplied with warranty documentation.
- Automatic standby, memory storage, temperature-controlled cooling, and native picture output.
🖥️ PERFORMANCE
Designed for 1080p up to 240Hz and 1440p up to 144Hz workflows, depending on the connected equipment and display capabilities.
🔌 CONNECTIONS
- HDMI Output: connects to the main display.
- HDMI1 Host: connects to the primary computer GPU.
- HDMI2 Secondary: connects to the secondary computer GPU.
- USB Type-C: used for program upgrades and EDID configuration when required.
- DC 12V: power input; default adapter is 12V 2A.
Connection note: follow the device connection order in the supplied instructions. The primary GPU should route its display output through the fusion device for the intended setup.

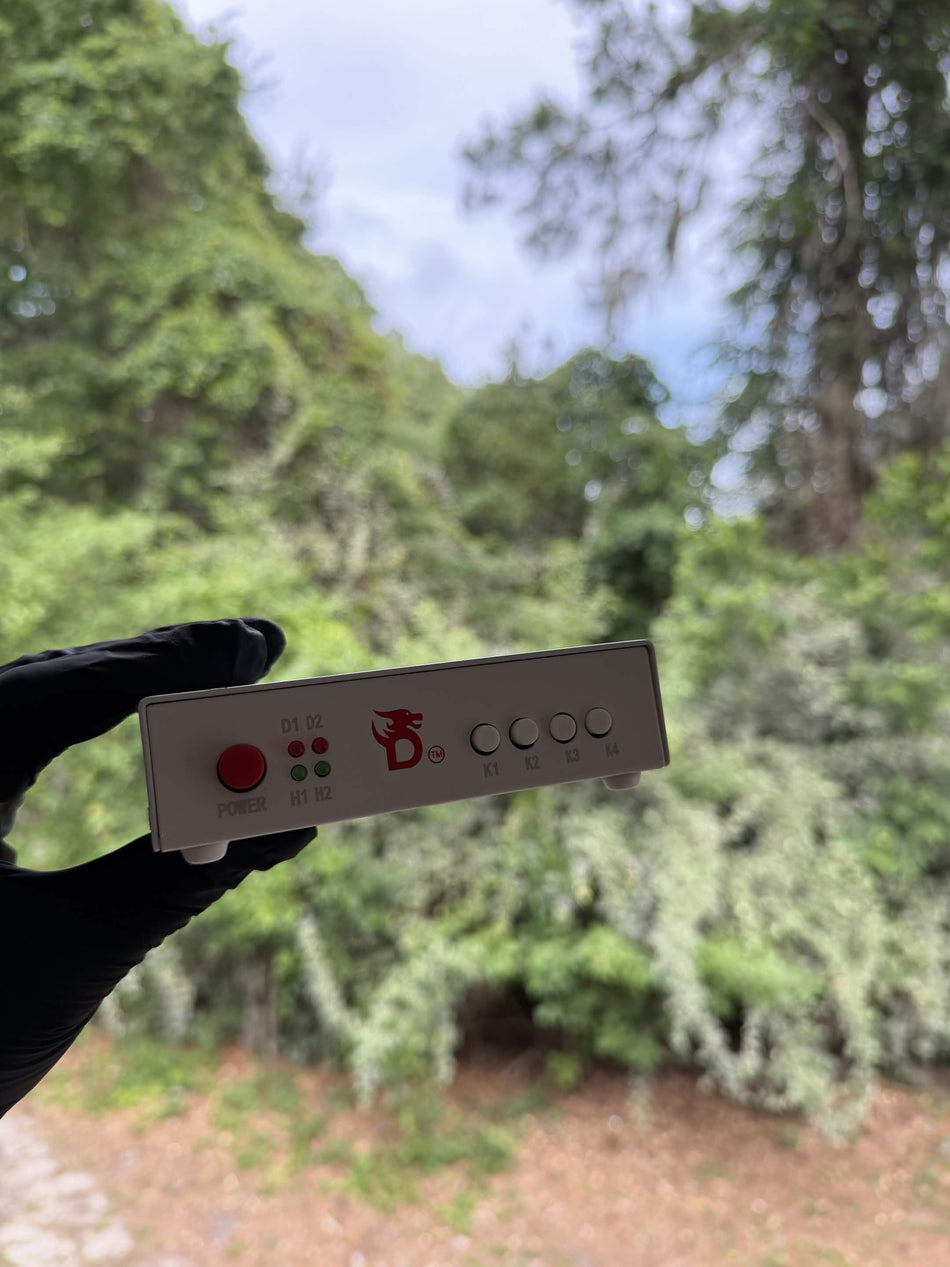

💡 INDICATORS
- D1: power indicator.
- D2: fusion-function status indicator.
- H1: HDMI1 host input signal indicator.
- H2: HDMI2 secondary input signal indicator.
🎛️ BUTTON FUNCTIONS
- Power: device power switch.
- K1: cycles supported resolutions including 1920×1080, 2560×1440, 3840×2160, 2560×1080, and 3440×1440. Holding K1 for approximately 3 seconds displays the current resolution and refresh-rate information.
- K2: adjusts the upper-layer image intensity across 21 levels (0–20).
- K3: restores the upper-layer adjustment to the default level.
- K4: switches the fusion function on or off.
💻 SECONDARY COMPUTER REQUIREMENTS
The device does not require a high-end secondary computer. A practical baseline is an Intel Core i5-class CPU with 4GB RAM. Actual performance depends on the operating system, GPU output capabilities, cables, resolution, and refresh rate.
📦 SHIPPING
Orders are normally prepared for shipment within 1–3 business days. International deliveries may use carriers such as FedEx, DHL, or UPS depending on destination and availability.
