OFFICIAL ZONADMA GUIDE

YOUR COMPLETE
DMA SETUP CENTER

Install, configure and verify your ZonaDMA system step by step. Drivers, testing and flashing are handled through ZonaDMA Toolset.

DOWNLOAD ZONADMA TOOLSET

OFFICIAL HARDWARE

PERSONALIZE YOUR GUIDE

SELECT YOUR DMA CARD

STEP 1 OF 13

BEFORE YOU BEGIN

Prepare your equipment before starting.

0/5

IMPORTANT Fully shut down both computers before installing or moving internal hardware.

1

Two Windows computersMain/Game PC and Second/Radar PC.

2

Your ZonaDMA DMA Card75T, 100T or M.2.

3

USB cablesUse the included JTAG and DATA cables.

4

Download and install ZonaDMA ToolsetAll drivers, DNA, testing and firmware flashing are inside the Toolset.DOWNLOAD ZONADMA TOOLSET

5

Firmware file, when applicableUse only the firmware supplied for your card.

DMA CARD ·

HARDWARE SETUP (MAIN PC)

Install the DMA Card and connect it to your second PC.

0/7

1

Power down the Game PC

Shut down Windows completely. Turn the power-supply switch to the OFF position and unplug the power cable before touching internal hardware.

OFF means the side marked O. Do not work inside the PC while it is connected to power.

2

Insert the DMA Card into PCIe

Use an available PCIe slot. Align the gold connector with the slot, press the card down evenly and secure the metal bracket to the case.

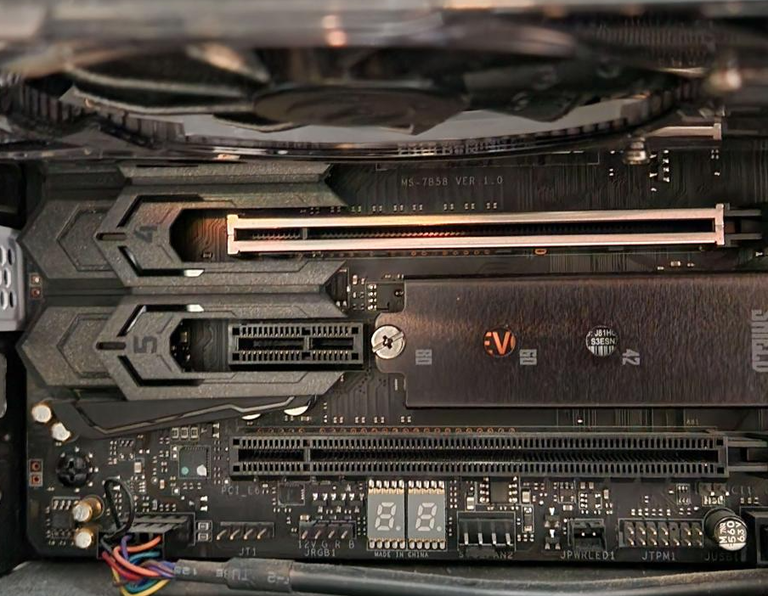

Available PCIe slots inside a gaming PC — Use one of the open PCIe slots shown in this real PC example.

1Remove the matching rear case bracket.

2Hold the DMA by its edges. Do not touch the gold contacts.

3Press straight down until the connector is fully seated.

4Secure the metal bracket with a screw.

3

Connect the DATA port to the Second PC

Use the included USB cable. DATA is used for normal operation and Speed Test; JTAG is used for drivers, DNA ID and firmware flashing.

JTAG and DATA ports on a DMA card — Use the port named DATA for normal operation.

4

Enter BIOS / UEFI

Power on the Game PC and repeatedly press DEL, F2 or ESC during startup. The exact key depends on the motherboard.

5

Disable virtualization settings

Select the instructions matching your processor. Menu names can vary by motherboard manufacturer.

Intel BIOS virtualization settings disabled — **INTEL:** Set Intel Virtualization Technology and VT-d to Disabled.

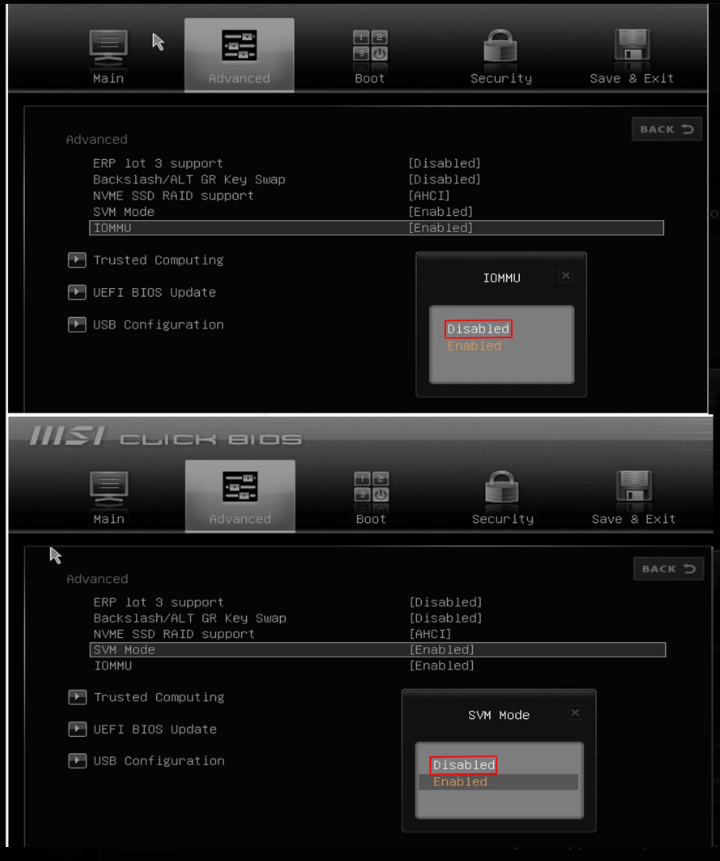

AMD BIOS IOMMU and SVM disabled — **AMD:** Set IOMMU and SVM Mode to Disabled.

IMPORTANT Do not change unrelated BIOS settings. Save the original values before making changes.

6

Review Windows Memory Integrity

Open Windows Security → Device Security → Core isolation. Follow the compatibility requirements for your setup and restart Windows after changing this option.

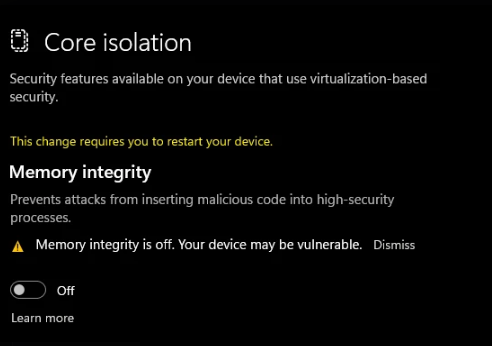

Windows Core Isolation Memory Integrity turned off — Example of Memory Integrity shown as Off.

1

PC powered down and unpluggedWindows shut down and power removed.

2

DMA Card installed securelyCard is fully seated and bracket secured.

3

DATA cable connected to the Second PCUse JTAG later for DNA and flashing.

4

BIOS settings reviewedOnly the required settings were changed.

5

Windows security setting reviewedRestart completed if a setting was changed.

6

Both computers boot normallyNo warning lights or abnormal behavior.

7

Ready for driver setupContinue on the Second PC.

SECOND PC

JTAG DRIVER SETUP

Connect the USB cable to the JTAG port for this step.

0/4

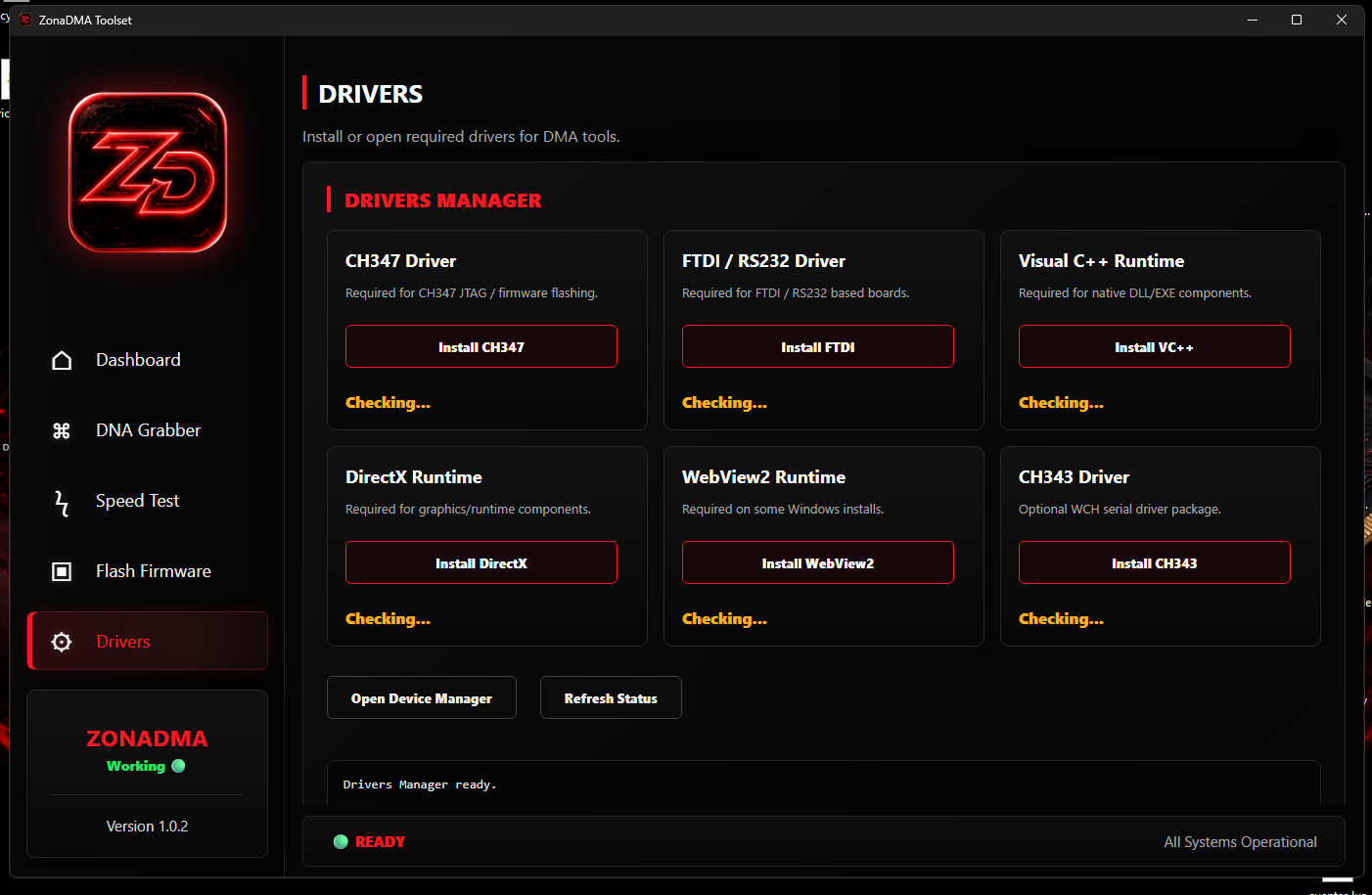

ZonaDMA Toolset Drivers Manager — Open **ZonaDMA Toolset → Drivers** and use the CH347/JTAG driver option.

DMA card JTAG and DATA ports — Select the physical port below before continuing.

1

Connect to JTAGMove the USB cable to the card's JTAG port.

2

Open ZonaDMA ToolsetRun it as administrator on the second PC.

3

Install JTAG DriverOpen Drivers and select the JTAG driver installation button.

4

Confirm InstalledContinue only after the Toolset reports the driver as installed.

SECOND PC

DATA DRIVER SETUP

Connect the USB cable to the DATA port.

0/4

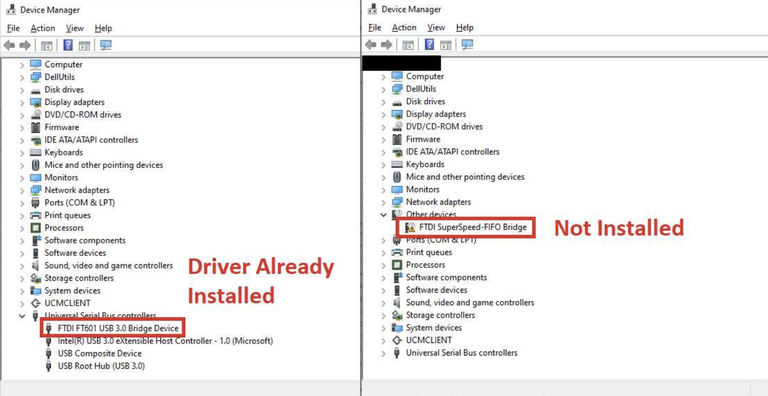

DATA driver installed and missing comparison — Device Manager examples: installed versus missing DATA driver.

CORRECTFTDI FT601 USB 3.0 Bridge Device

MISSINGFTDI SuperSpeed-FIFO Bridge under Other devices

WRONGRemove the incorrect driver before reinstalling

1

Connect to DATAUse the DATA port, not JTAG.

2

Open Toolset → DriversSelect Install DATA Driver.

3

Restart if promptedReconnect the DMA after installation.

4

Verify in Device ManagerThe correct FTDI FT601 device should appear without a warning icon.

SECOND PC

SPEED TEST

Test DMA stability from ZonaDMA Toolset.

0/4

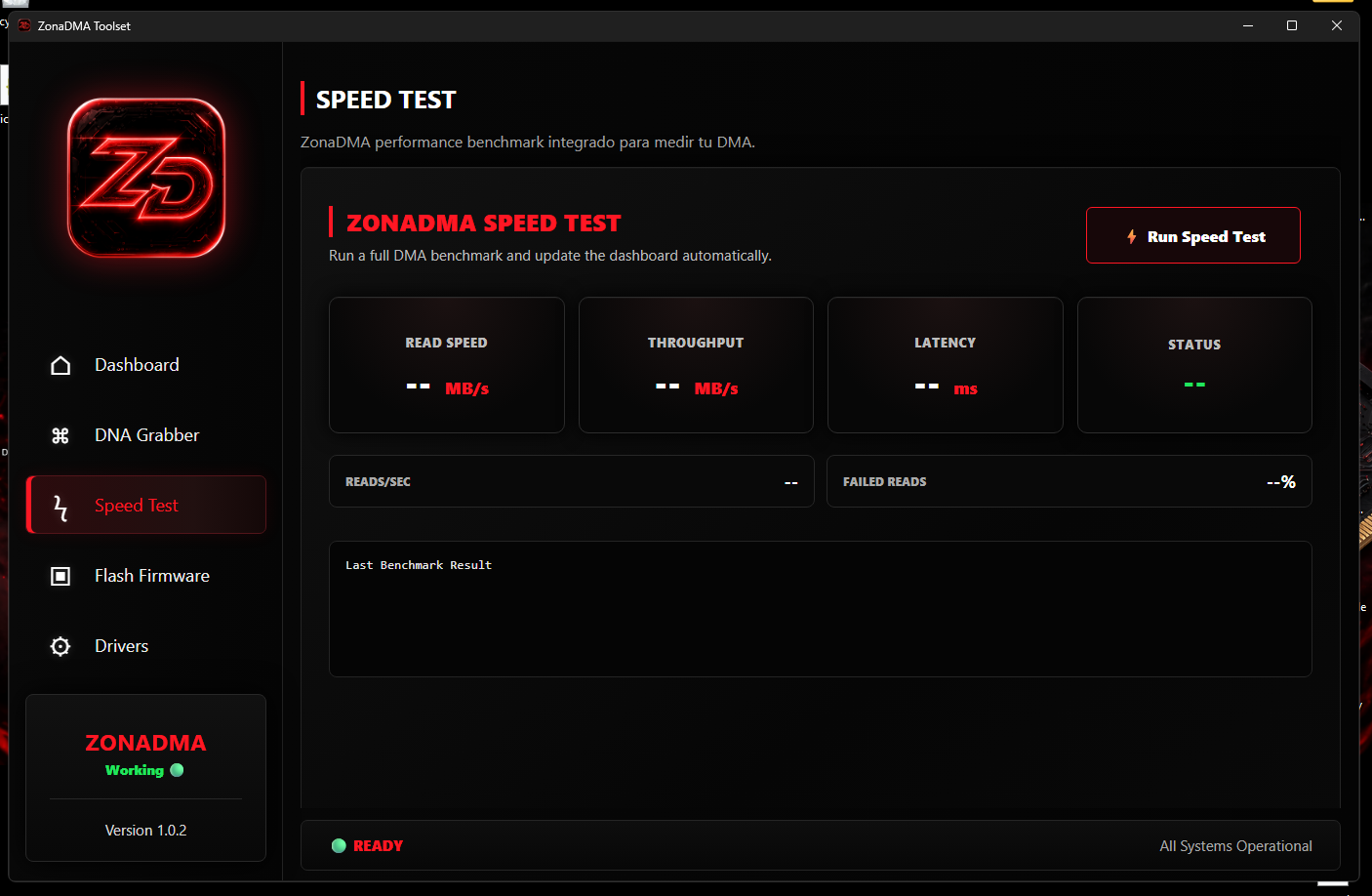

ZonaDMA Toolset Speed Test panel — Open **Speed Test** and click **Run Speed Test** while connected through **DATA**.

1

Open Speed TestRun the Toolset as administrator.

2

Select Full TestAllow the test to complete without disconnecting the cable.

3

Review the resultStable results with no read errors are more important than a single peak number.

4

Save a screenshotIf support is needed, include the complete result.

LOW< 4000 speed / < 125 MB/s

GOOD5200+ speed / 150+ MB/s

AMAZING6500+ speed / 200+ MB/s

ELITE7500+ speed / 220+ MB/s

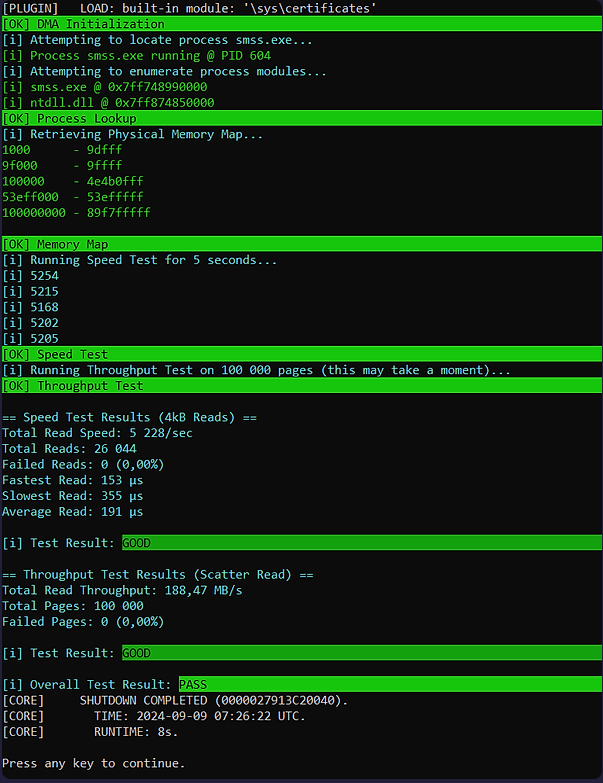

Example of a completed DMA benchmark with PASS result — Example of a successful test: zero failed reads and an overall PASS result.

DMA FIRMWARE

READ YOUR DNA ID

Use ZonaDMA Toolset to retrieve the unique card ID.

0/5

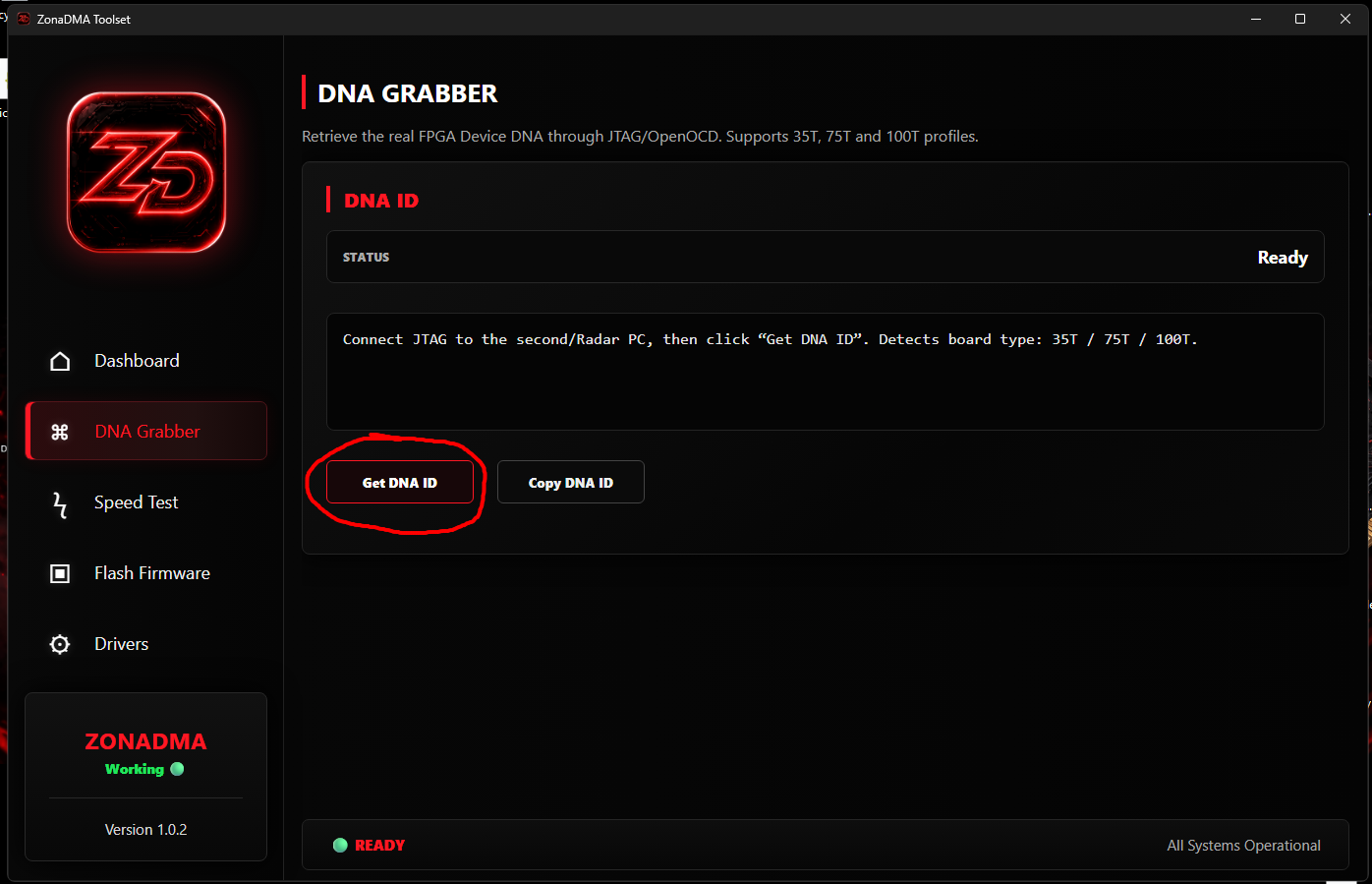

ZonaDMA Toolset DNA Grabber — Open **DNA Grabber**, click **Get DNA ID**, then click **Copy DNA ID**.

1

Connect the cable to JTAGDNA reading requires the JTAG connection.

2

Open ZonaDMA ToolsetRun as administrator.

3

Open DNA GrabberSelect your DMA model if it is not detected automatically.

4

Click Get DNA IDWait for the READY result.

5

Copy the complete DNA IDSend it with your ZonaDMA firmware order number through the official support ticket.

STATUS: READY
DEVICE:
DNA: 00FA-XXXX-XXXX-XXXX

35T / 75T / 100T

FIRMWARE FLASHING

Flash the supplied .bin file through ZonaDMA Toolset.

0/7

DO NOT DISCONNECT Never unplug the card, USB cable or either PC while flashing is in progress.

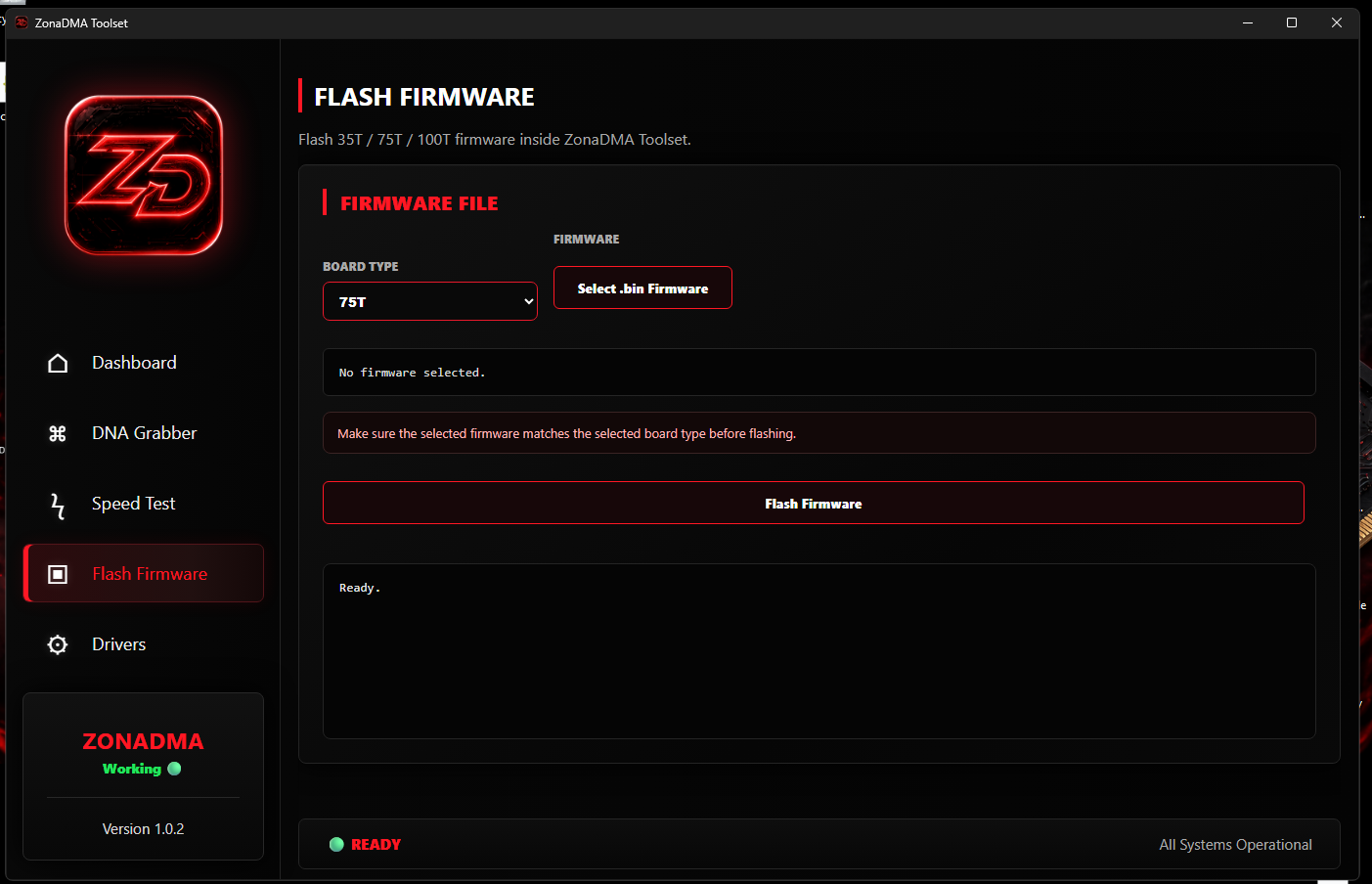

ZonaDMA Toolset Flash Firmware panel — Select the correct board type, choose the .bin file and click Flash Firmware.

1

Connect to JTAGMove the USB cable from DATA to JTAG.

2

Confirm JTAG DriverThe Toolset must show the driver as installed.

3

Open Flash FirmwareZonaDMA Toolset automatically handles the required board settings.

4

Select your .bin fileUse only the firmware supplied for your exact card.

5

Click FlashWait until progress reaches 100% and success is displayed.

6

Power-cycle the DMAShut down safely, then reconnect the cable to DATA.

7

Run another Full Speed TestConfirm the card is detected and stable after flashing.

MACKU

MACKU CABLE SETUP

Connect each USB port to the correct device.

0/3

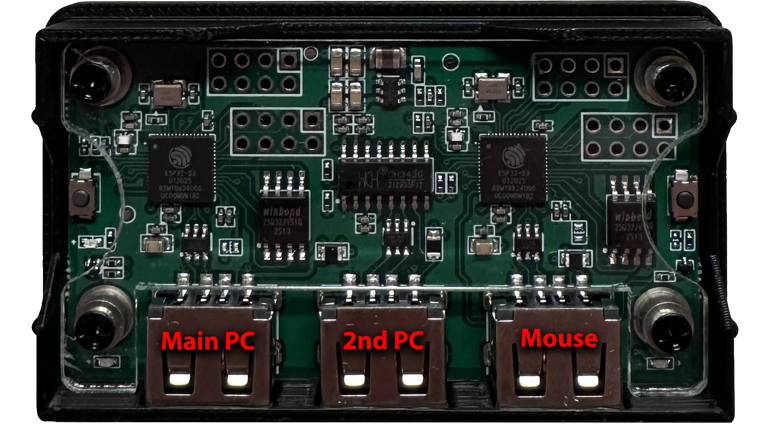

Macku port connections — Left: Main PC · Center: Second PC · Right: Mouse

1

Left port → Main PCConnect the left USB port to the Game PC.

2

Center port → Second PCConnect the middle USB port to the Radar/Second PC.

3

Right port → MouseConnect your mouse to the right USB port.

MACKU · SECOND PC

DRIVER & COM PORT

Install the driver through ZonaDMA Toolset, then verify the COM port.

0/5

1

Open Toolset → DriversClick Install Macku Driver.

2

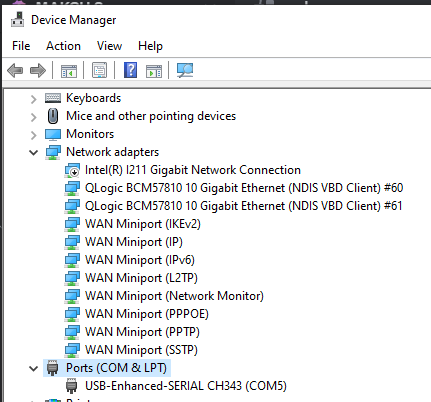

Open Device ManagerExpand Ports (COM & LPT).

3

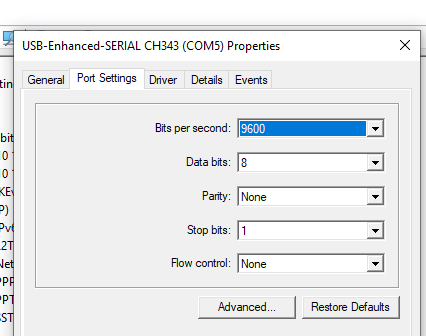

Open device PropertiesSelect Port Settings → Advanced.

4

Set a COM number below 10Choose an available COM1–COM9 value.

5

Restart MackuClose related tools, unplug and reconnect the left cable.

MACKU

MACKU FLASHING

Complete both sides from the Second PC using the official ZonaDMA utility supplied through support.

0/7

PRE-SETUP Run the flashing utility from the second PC and use one USB cable during the process.

1

Remove the top coverPull it straight up without twisting.

2

Hold the left buttonWhile holding it, connect the USB cable to the left port.

3

Confirm flash modeThe utility should report that the MCU is connected in flash mode.

4

Flash LeftWait for completion, then unplug the left port.

5

Hold the right buttonConnect the USB cable to the right port while holding the button.

6

Flash RightWait until the right-side flash completes.

7

Reconnect normal cablesRestore Main PC, Second PC and mouse connections.

DISPLAY FUSERS

FUSER CONNECTION

Select the connection panel that matches your exact model.

0/5

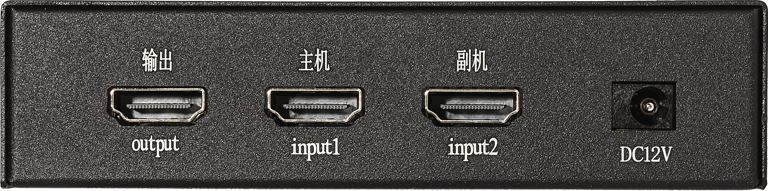

HDMI Fuser rear input and output panel — HDMI Fuser rear panel. Match the labels printed on your device.

OUTPUTConnect to the monitor.

INPUT 1Connect to the Main PC GPU.

INPUT 2Connect to the Second PC GPU.

DC12VConnect the power adapter.

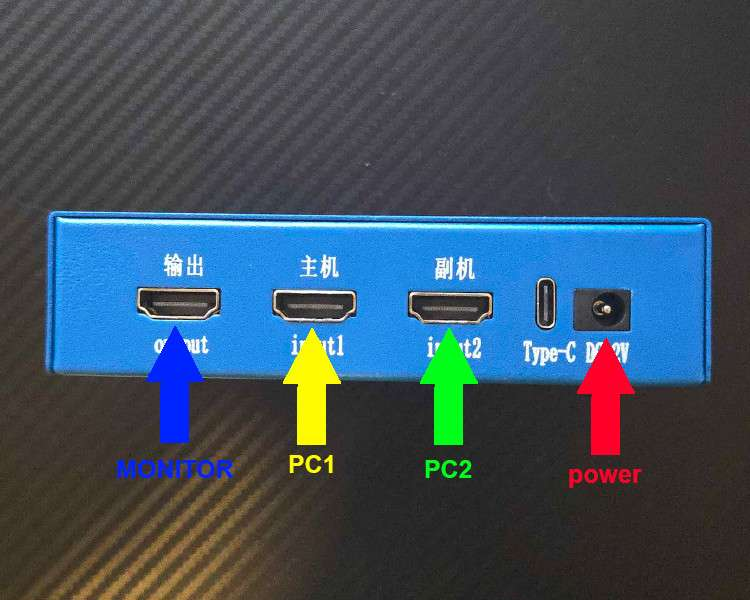

D60 4K Fuser cable connection guide — D60 4K Fuser connection reference.

OUTPUTMonitor.

INPUT 1Main PC.

INPUT 2Second PC.

TYPE-C / POWERPower connection.

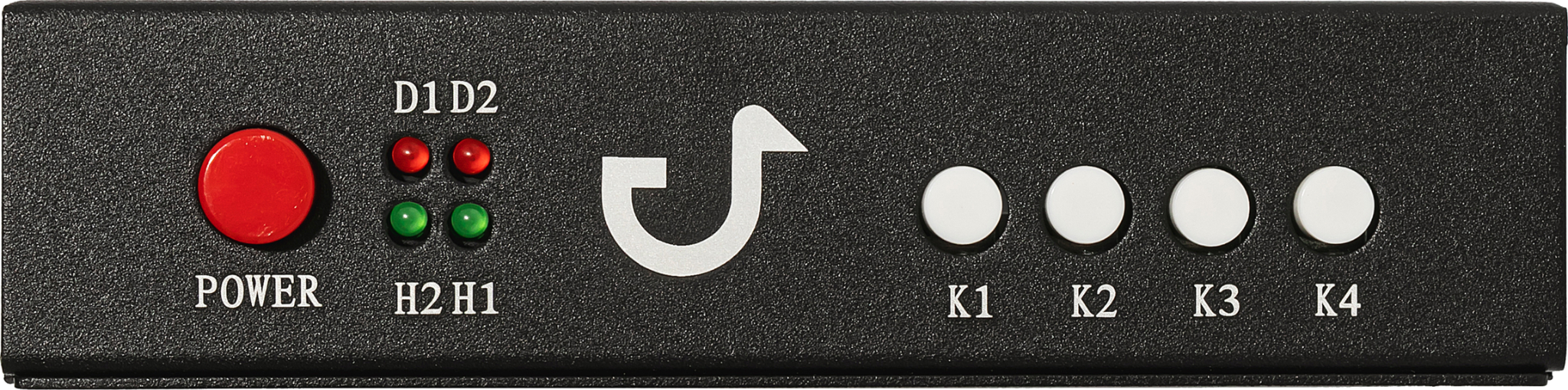

1K Fuser front panel buttons and indicators — 1K Fuser front controls and status indicators.

D1Power indicator

D2Fusion enabled

H1Main PC signal

H2Second PC signal

K1Second PC only

K2Main PC only

K3Enable / adjust fusion

K4Factory reset

MAIN PC GPUInput 1

→

ZONADMA FUSERSignal fusion

→

MONITOROutput

1

Power off the complete display chainTurn off both PCs, the monitor and the fuser.

2

Connect Main PC to Input 1Use the connector marked Input 1 / Main PC.

3

Connect Second PC to Input 2Use the connector marked Input 2 / Second PC.

4

Connect Output to the monitorThe monitor should connect only to the fuser output.

5

Connect power and verify the imageTest your required resolution and refresh rate.

FINAL CHECK

VERIFY YOUR SYSTEM

Complete every check before normal use.

0/8

DMA CARDDetected in DATA mode

READY

DRIVERSJTAG and DATA installed

INSTALLED

SPEED TESTCompleted without errors

PASSED

DNA IDSaved securely

VERIFIED

FIRMWAREFlash confirmed

FLASHED

MACKUCOM port configured

READY

FUSERImage and refresh rate verified

READY

CONNECTIONSAll cables secured

SECURE

✓

ZONADMA SYSTEM STATUS

SYSTEM VERIFIED

Your complete DMA system is configured and ready.

100%

SUPPORT

TROUBLESHOOTING

Start with the matching issue, then contact official support if it continues.

DMA is not detected

Confirm DATA versus JTAG, reconnect the USB cable, try another USB port, restart both PCs and verify the required driver in ZonaDMA Toolset.

Yellow warning icon in Device Manager

Remove the incorrect device driver, reconnect the card and reinstall the matching driver from ZonaDMA Toolset.

Speed Test is low or unstable

Try another PCIe slot and USB port, use the included cable, close heavy background applications and retest after a full shutdown.

Firmware flash does not start

Confirm JTAG mode, run Toolset as administrator, verify the .bin belongs to your exact card and do not rename or modify the file.

Macku is not detected

Check all three ports, verify its COM number is below 10, restart the device and reinstall the driver through ZonaDMA Toolset.

Fuser has no image

Verify input/output direction, test a lower resolution, reconnect power and use cables rated for your selected resolution and refresh rate.

OFFICIAL SUPPORT

Still need help?

Send screenshots, your order number and the exact step where the issue occurs.

OPEN ZONADMA DISCORD
